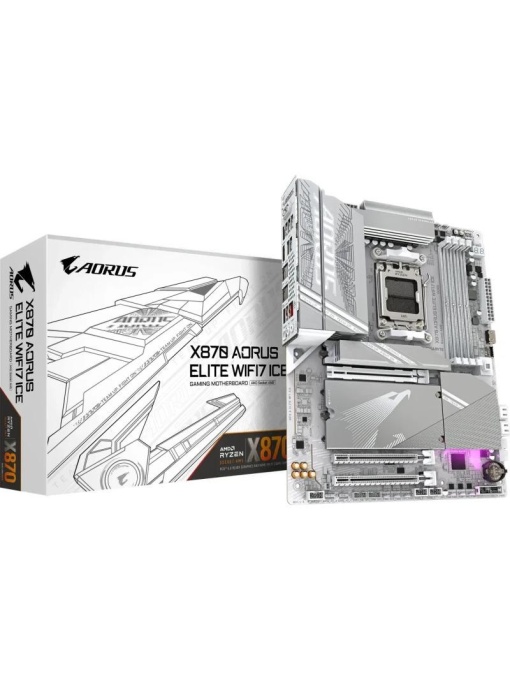

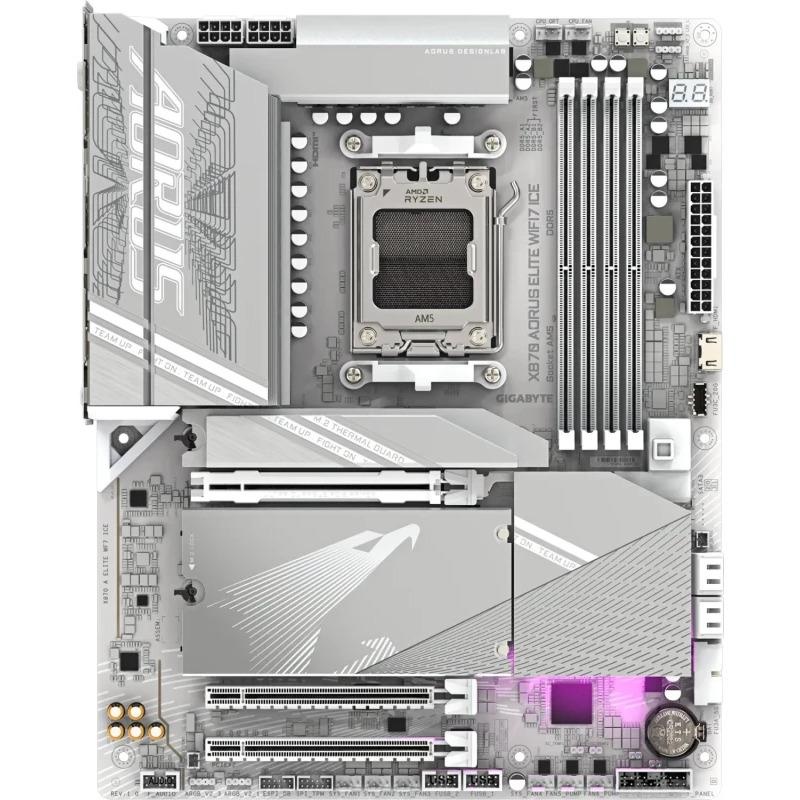

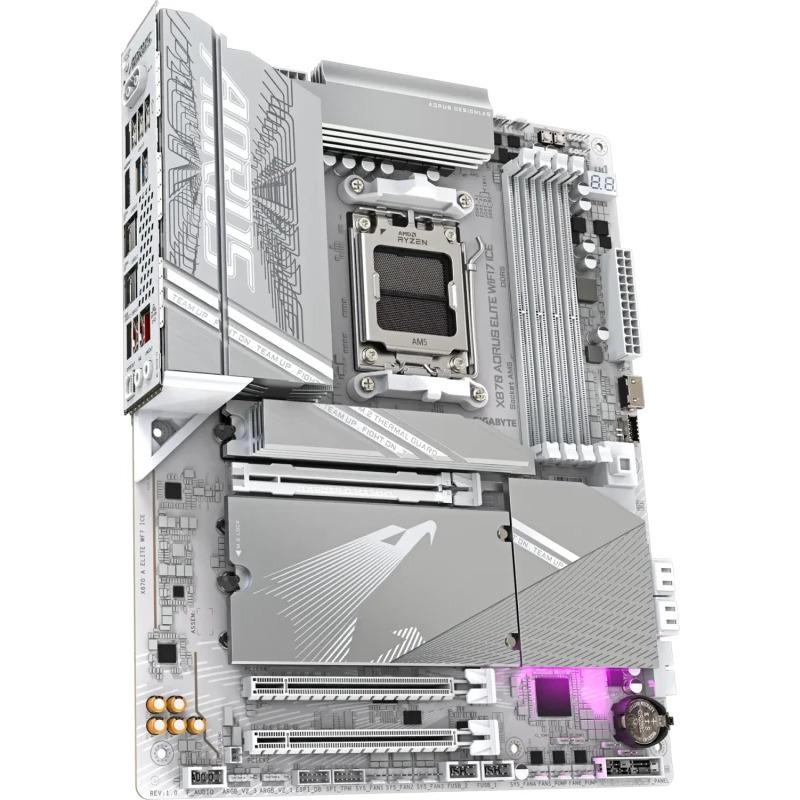

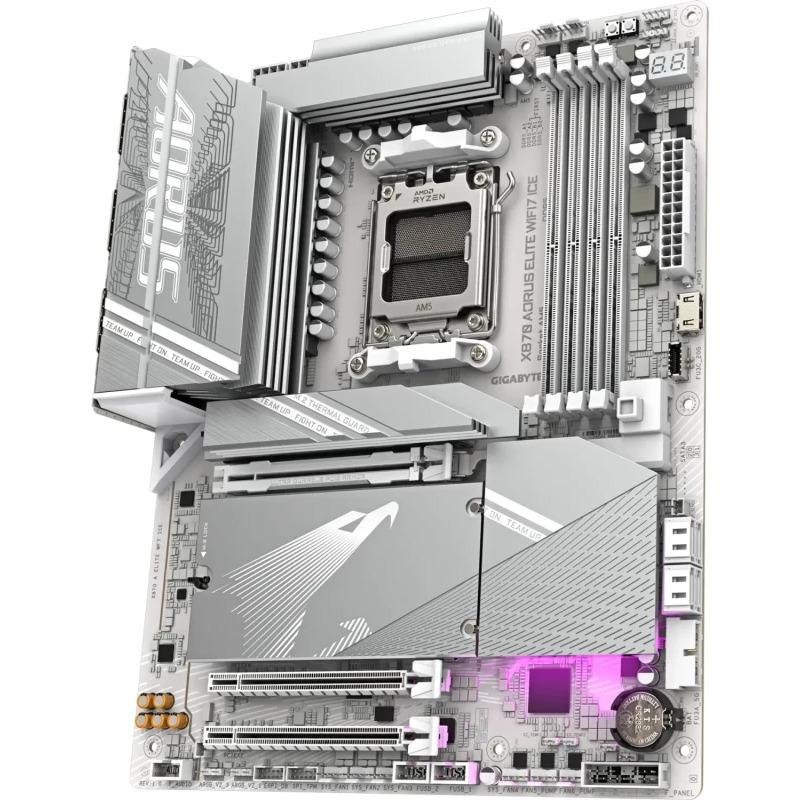

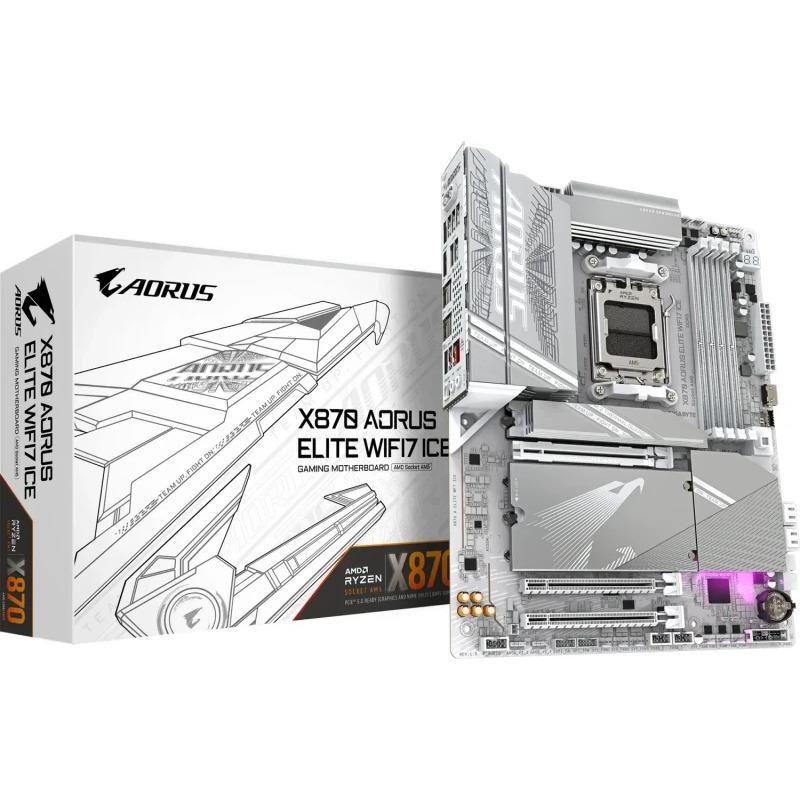

Placa de bază Gigabyte X870 AORUS ELITE WIFI7 ICE AM5
1.660 29 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Plateste in rate
52 54 RON
Rata lunara
Calculator de rate
Cum te putem ajuta?
Descriere
Placa de Baza GIGABYTE X870 AORUS ELITE WIFI7 ICE AM5 4x DDR5, 1x PCIE Gen5 x16 2x PCIE 4.0 x4, 4x M.2, 4x SATA 6GB/s, ATX
Detalii
SKU
X870 A ELITE WF7 ICE
Categorii
Brand
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS memory size
256 Mbit
Number of M.2 (M) slots
4
Number of displays supported
4
Discrete graphics support
Yes
On-board graphics card
Yes
On-board graphics card model
AMD Radeon Graphics
Parallel processing technology support
Not supported
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
2
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Number of SATA II connectors
0
Number of SATA connectors
0
Total number of SATA connectors
4
Number of chassis fan connectors
6
Number of water pump connectors
3
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
Supported memory clock speed (max)
8200 MHz
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Memory channels
Dual-channel
Processor manufacturer
AMD
Maximum internal memory supported by processor
256 GB
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Number of HDDs supported
4
Number of storage drives supported
8
Component for
PC
Ethernet LAN
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPorts quantity
0
DisplayPort version
1.4
Screws included
Yes
DirectX version
12.0
HDMI version
2.1
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-FI
Yes
Number of battery cells
1
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
PCI Express x16 (Gen 3.x) slots
1
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
25110
PCI Express x16 (Gen 5.x) slots
1
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
5.0
Motherboard form factor
ATX
Motherboard chipset family
AMD
PC health monitoring
Fan, Noise, Temperature, Voltage, Water cooling
Audio Chip
Realtek ALC1220
Audio output channels
7.1 channels
Motherboard chipset
AMD X870
HDCP
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Front panel audio connector
Yes
CPU fan connector
Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
ECC сompatibility
Non-ECC
Headphone outputs
1
RAID support
Yes
RAID levels
0, 1, 10
PCI Express x16 (Gen 4.x) slots
1
WLAN controller model
MediaTek MT7925
Bluetooth version
5.4
Antenna included
Yes
WiFi-AP antenna jack
2
Microphone in
Yes
USB 3.2 Gen 2x2 Type-C ports quantity
0
PCI Express x1 (Gen 3.x) slots
0
MB-Socket
AM5
MB-Format
ATX
RAM-Slots
4
USB3
4-8
PCI-Ex1
0
PCI-Ex16
3
Onboard-CPU
No
PCI
0
Serial-or-Paralel
No/No
Clear CMOS button
Yes
4th M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
USB 3.2 Gen 2x2 connectors
1
S/PDIF out port
Yes
USB4 Gen 3x2 ports quantity
2
PCI Express x4 (Gen 4.x) slots
0
PCI Express x1 (Gen 4.x) slots
0
PCI Express x4 (Gen 3.x) slots
0
PCI Express x8 (Gen 3.x) slots
0
PCI Express x8 (Gen 4.x) slots
0
PCI Express x8 (Gen 5.x) slots
0
