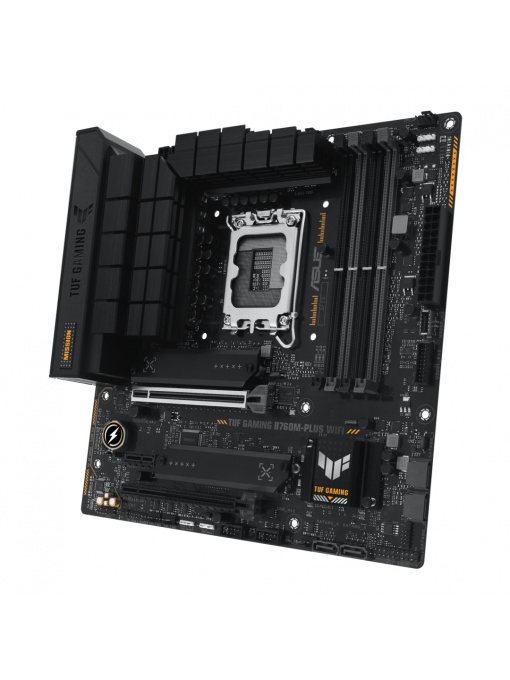

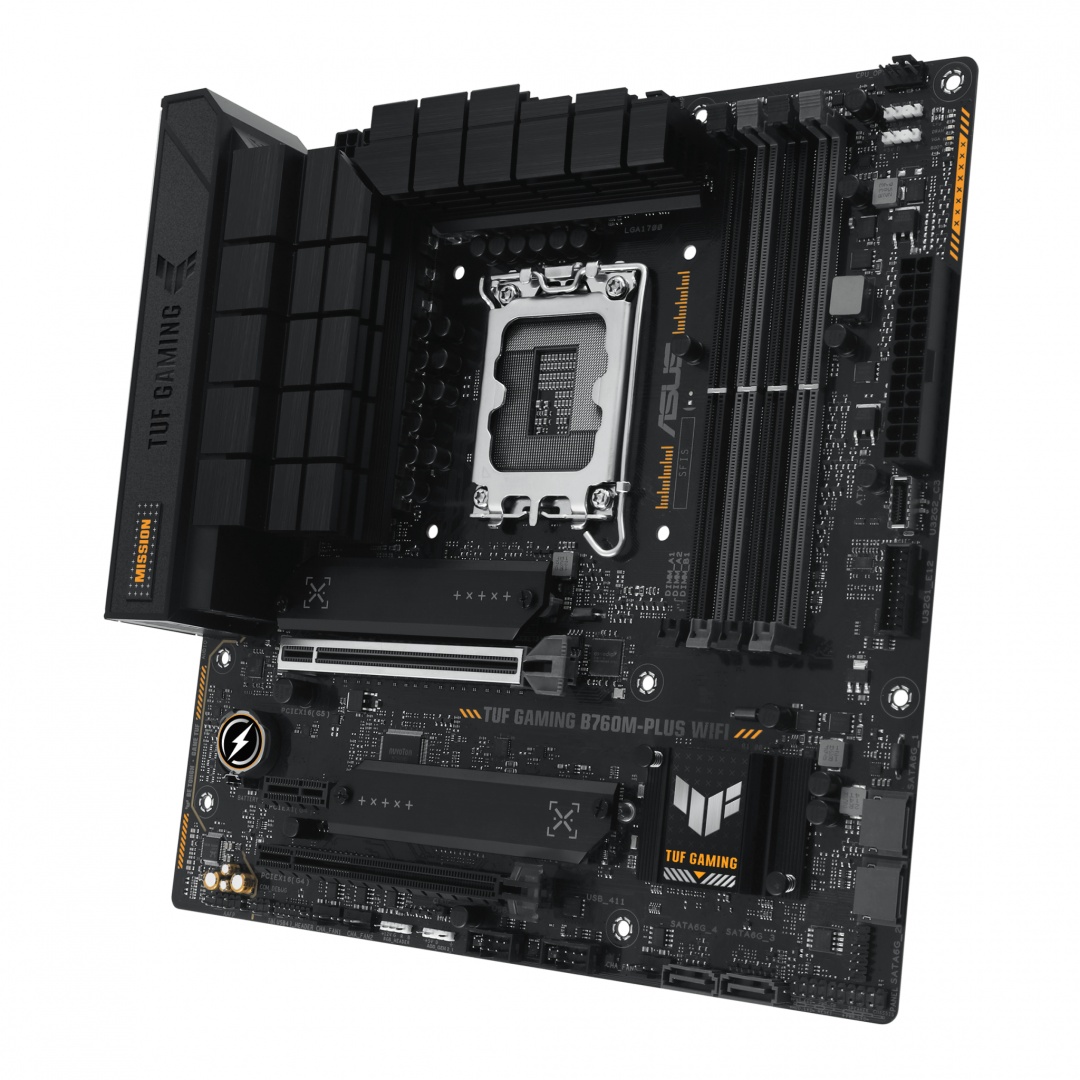

Placa de bază ASUS TUF GAMING B760M-PLUS LGA1700

ASUS
RON 1,307 91 (VAT included)
shipping cost is not included
ASUS
Repayment of installments: fast and easy
RON 51 85 Monthly payment
Installment calculator Leanpay
Buy now, pay later from RON 29.70 / Month Details
Product code - SKU TUF B760M-PLUS
Add to Favorites
How can we help?
Call us: +40757183317 (Luni-Vineri | 09:00-17:00)
Ask for details
Send us a message

Details

SKU
TUF B760M-PLUS
Categories
Componente PC
Brand
ASUS
BIOS memory size
128 Mbit
Number of M.2 (M) slots
2
Parallel processing technology support
Not supported
Number of SATA III connectors
4
Number of chassis fan connectors
3
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Supported memory clock speed (max)
7200 MHz
Supported memory types
DDR5-SDRAM
Maximum internal memory
128 GB
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Memory channels
Dual-channel
Processor manufacturer
Intel
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Number of HDDs supported
4
Number of storage drives supported
6
Cooling type
Passive
Component for
PC
Ethernet LAN
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPorts quantity
1
DisplayPort version
1.4
HDMI version
2.1
Wi-FI
No
BIOS type
UEFI AMI
PCI Express x16 (Gen 5.x) slots
1
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Audio output channels
7.1 channels
Motherboard chipset
Intel B760
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Front panel audio connector
Yes
CPU fan connector
Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
RGB LED pin header
Yes
ECC сompatibility
Non-ECC
Line-in
Yes
RAID support
Yes
RAID levels
0, 1, 5, 10
PCI Express x16 (Gen 4.x) slots
1
Thunderbolt headers
1
Microphone in
Yes
USB 3.2 Gen 2x2 Type-C ports quantity
1
Onboard-CPU
No
PCI
0
Serial-or-Paralel
No/No
S/PDIF out port
Yes
PCI Express x1 (Gen 4.x) slots
1
