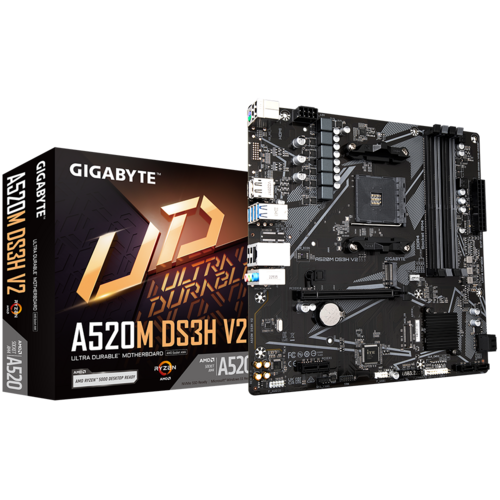

Placă de baza GIGABYTE A520M DS3H V2 AM4, 4x DDR4, 1x DP 1x HDMI
479,99 lei
În stoc
Livrare estimată: 3–5 zile lucrătoare
Garanție 36 luni · Retur 14 zile · Factură pe firmă
0757 183 317Disponibil prin SEAP
Placa de baza GIGABYTE A520M DS3H V2 AM4, 4x DDR4, 1x DP 1x HDMI, 1 PCIE x16 1x PCIE x1, 1x M.2, 4x SATA 6gb/s
| Lithium weight per battery | 0.07 g |
|---|---|
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS button | Yes |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Cooling type | Active |
| Windows operating systems supported | Windows 10 x64 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Audio Chip | Realtek ALC887 |
| PC health monitoring | CPU, LED, Power supply, Temperature, Voltage |
| Power source type | ATX |
| Number of displays supported | 3 |
| Discrete graphics support | Yes |
| HDCP | Yes |
| Maximum resolution | 5120 x 2880 pixels |
| Total number of SATA connectors | 4 |
| 12V power connector | Yes |
| USB 2.0 connectors | 1 |
| Serial port headers | 1 |
| Front panel connector | Yes |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Power fan connector | Yes |
| Number of EATX power connectors | 1 |
| Country of origin | China |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3333,3600,4000,4400,4733 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 16GB, 32GB |
| ECC сompatibility | ECC & Non-ECC |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-FI | No |
| Drivers included | Yes |
| Cables included | SATA |
| Bundled software | Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package weight | 810 g |
| Package height | 54 mm |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series |
| Processor socket | Socket AM4 |
| Processor manufacturer | AMD |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | Socket AM4 |
| Maximum internal memory supported by processor | 128 GB |
| eSATA ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB connector type | USB Type-A |
| DisplayPort version | 2.0 |
| DVI-D ports quantity | 1 |
| Digital audio optical out | 1 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| RAID levels | 0, 1, 10 |
| Height | 35 mm |
| Depth | 24.4 mm |
| Width | 244 mm |
| Onboard-CPU | No |
| PCI | 0 |
| Serial-or-Paralel | No/No |
