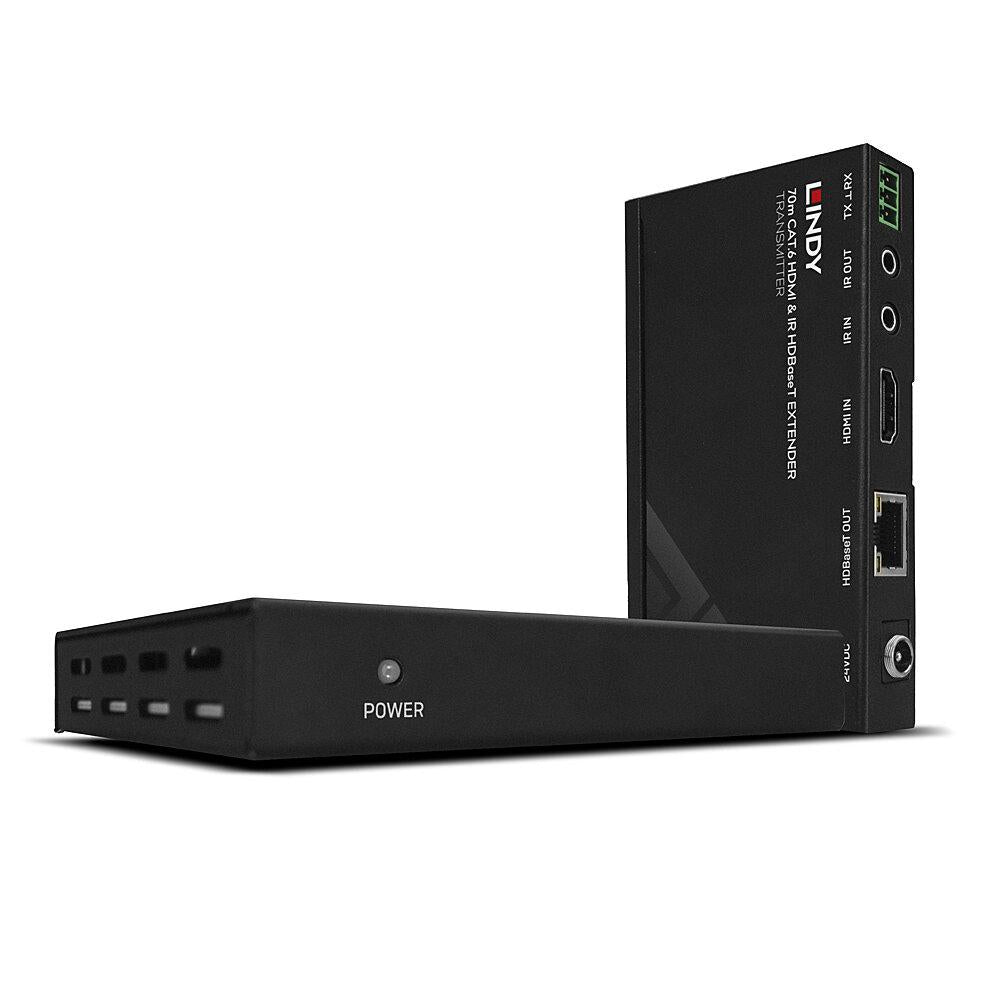

Lindy 70m C6 HDBaseT HDMI & IR Extender
NOULivrare gratuită

Lindy 70m C6 HDBaseT HDMI & IR Extender

LINDY · SKU LY-38139
1.416,99 lei
În stoc
Livrare estimată: 3–5 zile lucrătoare
Garanție 24 luni · Retur 14 zile · Factură pe firmă
Cere ofertă pentru cantitate sau proiect
0757 183 317Disponibil prin SEAP
Extender HDMI & IR Lindy 70m C6 HDBaseT with PoC
Extend HDMI resolutions up to 70m via HDBaseT

Description


  • Distributes HDMI resolutions up to 70m over Cat.6 network cable via HDBaseT technology
  • Supports HDMI 10.2G resolutions up to 4K@30Hz 4:4:4
  • CEC pass-through and bi-directional IR for simple control
  • Supports PoC (Power over Cable), requiring a power supply connection from only one side of the installation

Technical details


Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 1.4
  • Supported Bandwidth: 10.2 Gbps
  • Maximum Distance: 70m (229.66ft)
  • Maximum Resolution: 3840x2160@30Hz 4:4:4 8bit
  • HDCP Support: Pass-through
  • EDID Pass Through: Pass-through
  • Supported Audio: Pass-through
  • Separate Audio Ports: -
  • IR Support: 20-60kHz
  • CEC Support: -
  • Serial Interface: RS-232
  • Transmission Protocol: HDBaseT
  • Transmission Medium: 1 x Cat.5e/6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: VS010
  • Special Features: PoC (Power over Cat.6)



Connectors

  • Transmitter Input: HDMI (Female), IR (Female)
  • Transmitter Output: RJ45 (Female), IR Female)
  • Receiver Input: RJ45 (Female), IR Female)
  • Receiver Ouput: HDMI (Female), IR (Female)
  • Bidirectonal Ports: RS-232
  • Power: 5.5/2.1mm DC socket



Physical Properties

  • Dimensions WxDxH: 65x115x17mm (2.56x4.53x0.67in) per unit
  • Housing Material: Metal
  • Net Weight: 0.2kg (0.44lb) per unit
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20-90% RH (non-condensing)
  • Power Requirements: 24VDC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 193x191x69mm (7.6x7.52x2.72in)
  • Gross Weight: 0.84kg (1.85lb)
  • Warranty (Years): 2
  • Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65



Package Contents

  • Transmitter unit
  • Receiver unit
  • 2 x IR emitter cable
  • 2 x IR receiver cable
  • Mounting kit
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy manual
