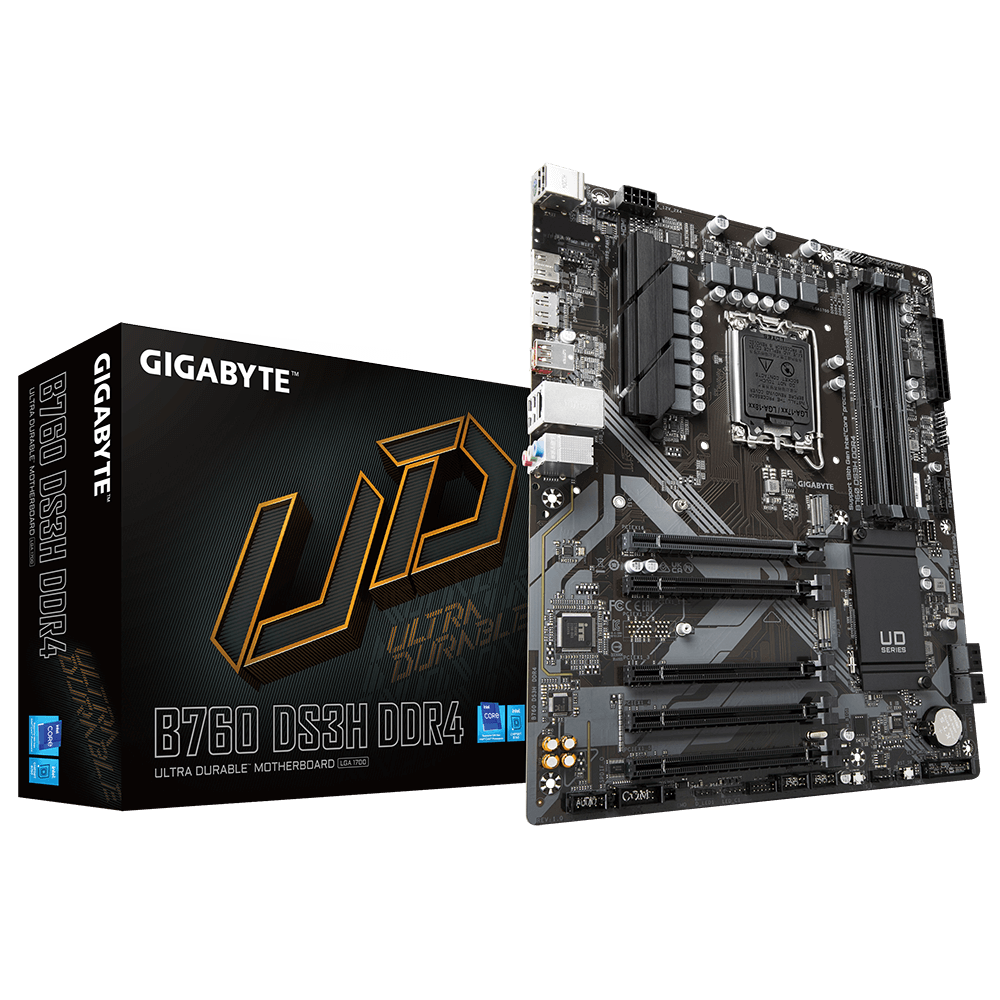

Placă de baza Gigabyte B760 DS3H DDR4 LGA1700 DDR4, 4x sloturi ram
1.055,99 lei
Stoc epuizat
Te putem anunța sau îți facem o ofertă: 0757 183 317
Garanție 36 luni · Retur 14 zile · Factură pe firmă
0757 183 317Disponibil prin SEAP
Placa de baza Gigabyte B760 DS3H DDR4 LGA1700 DDR4, 4x sloturi ram, max. 128GB, frecventa maxima suportata 5333MHz, 1x DisplayPort, 1x HDMI, 5x PCIe x16, 2x M.2, 4x conectori SATA 6GB/s, 1x LAN 1Gbps, ATX
| Lithium weight per battery | 0.07 g |
|---|---|
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 slots | 5 |
| Motherboard chipset | Intel B760 Express |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Total number of SATA connectors | 4 |
| 12V power connector | Yes |
| S/PDIF out connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Serial port headers | 1 |
| Front panel connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Country of origin | China |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-FI | No |
| Bundled software | Norton Internet Security |
| Cables included | SATA |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.31 kg |
| Maximum internal memory supported by processor | 128 GB |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Microphone in | Yes |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Headphone outputs | 3 |
| RAID support | Yes |
| Supported storage drive types | HDD & SSD |
| Number of HDDs supported | 4 |
| RAID levels | 0, 1, 5, 10 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of storage drives supported | 6 |
| Height | 35 mm |
| Width | 30.5 mm |
| Depth | 24.4 mm |
| Onboard-CPU | No |
| PCI | 0 |
| Serial-or-Paralel | No/No |
