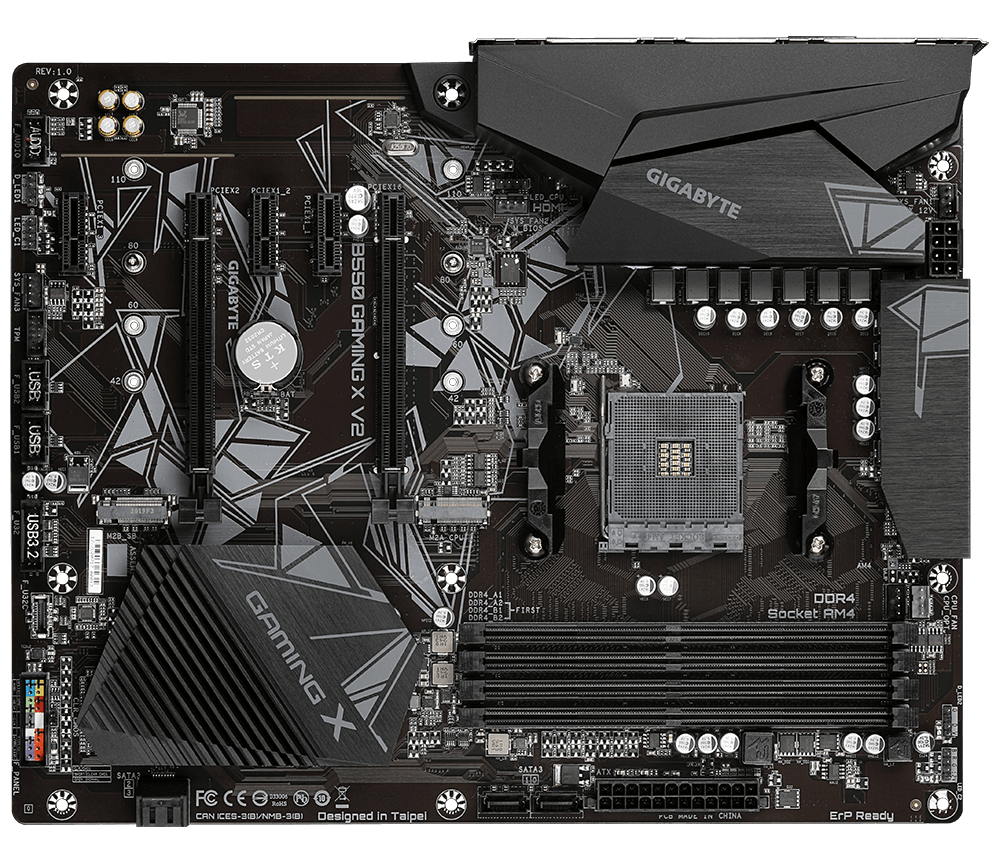

Placă de baza Gigabyte B550 GAMING X V2 Socket AM4 AMD B550 Gaming Motherboard with 10+3 Phases
899,99 lei
În stoc
Livrare estimată: 3–5 zile lucrătoare
Garanție 36 luni · Retur 14 zile · Factură pe firmă
0757 183 317Disponibil prin SEAP
Placa de baza B550 foloseste un design digital Twin Power de 10 + 3 faze cu MOSFET-uri RDS reduse (pornite) pentru a sprijini CPU-urile AMD Ryzen ™ de a 3-a generatie, oferind o precizie incredibila in furnizarea energiei celor mai consumatoare de energie si a componentelor sensibile la energie ale placii de baza, precum si oferind performante imbunatatite ale sistemului si scalabilitate hardware superioara.
| Lithium weight per battery | 0.07 g |
|---|---|
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 3 |
| PCI Express x16 slots | 2 |
| 2nd M.2 largest key size | 22110 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| PCI Express x1 slots | 3 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| Supported processor sockets (cooler) | Socket AM4 |
| Product colour | Brown |
| Power source type | ATX |
| Cooling type | Passive |
| Motherboard chipset | AMD B550 |
| Audio Chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| Graphics card family | AMD |
| On-board graphics card | No |
| HDCP | Yes |
| Maximum graphics card memory | 16 MB |
| S/PDIF out connector | No |
| Number of RGB LED pin headers | 5 |
| Number of chassis fan connectors | 3 |
| Power fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of water pump connectors | 4 |
| Front panel connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Total number of SATA connectors | 4 |
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Harmonized System (HS) code | 84733020 |
| Supported memory clock speeds | 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz |
| Maximum internal memory per slot | 32 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 16GB, 32GB |
| Supported memory clock speed (max) | 4733 MHz |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-FI | No |
| LAN controller | Realtek RTL8111H |
| mSATA ports quantity | 0 |
| DVI port | Yes |
| Supported DIMM module capacities | 32GB |
| Weight | 11.2 kg |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
| Package weight | 17.1 kg |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| Supported processor sockets | Socket AM4 |
| Maximum internal memory supported by processor | 128 GB |
| Processor socket | Socket AM4 |
| Processor manufacturer | AMD |
| Maximum number of SMP processors | 1 |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB connector type | USB Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Line-in | Yes |
| eSATA ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| RAID levels | 0, 1, 10 |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| Warranty period | 3 year(s) |
| Height | 35 mm |
| Width | 30.5 mm |
| Depth | 24.4 mm |
| CPU încorporat | No |
| PCI | 0 |
| Serial-or-Paralel | No/No |
