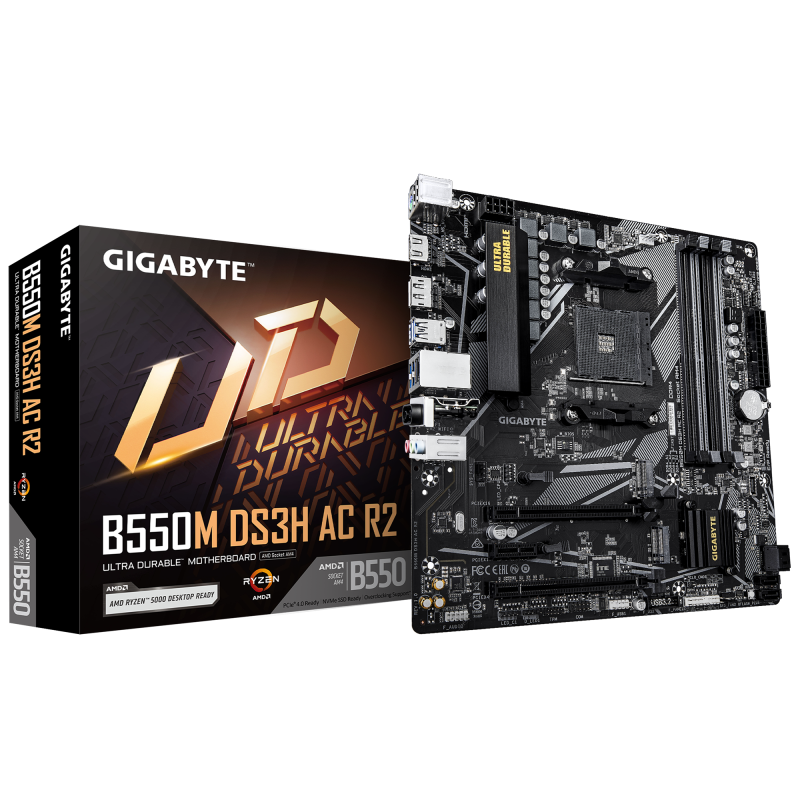

Placă de baza Gigabyte B550M DS3H AC R2 AM4, 4X DDR4, 1X DP 1X HDMI
791,99 lei
În stoc
Livrare estimată: 3–5 zile lucrătoare
Garanție 36 luni · Retur 14 zile · Factură pe firmă
0757 183 317Disponibil prin SEAP
Placa de Baza GIGABYTE B550M DS3H AC R2 AM4, 4x DDR4, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
| Lithium weight per battery | 0.07 g |
|---|---|
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| Power source type | ATX |
| PC health monitoring | Fan, Temperature, Voltage |
| Audio Chip | Realtek ALC1220-VB |
| Product colour | Dark brown |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Motherboard chipset | AMD B550 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Maximum resolution | 5120 x 2880 pixels |
| HDCP | Yes |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| DirectX version | 12.0 |
| Number of CPU fan connectors | 1 |
| Number of RGB LED pin headers | 5 |
| Number of EPS power connectors (8-pin) | 1 |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Serial port headers | 1 |
| Front panel connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Products per shipping (inner) case | 1 pc(s) |
| Maximum internal memory per slot | 32 GB |
| Supported memory clock speed (max) | 4733 MHz |
| Supported memory clock speeds | 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| WLAN controller model | Realtek RTL8821CE |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-FI | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth version | 5.0 |
| Weight | 980 g |
| mSATA ports quantity | 0 |
| Antenna included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Package height | 68 mm |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package weight | 1.07 kg |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| Supported processor sockets | Socket AM4 |
| Processor socket | Socket AM4 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| PS/2 ports quantity | 1 |
| WiFi-AP antenna jack | 2 |
| DVI-D ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| RAID levels | 0, 1, 10 |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Supported storage drive types | HDD & SSD |
| Warranty period | 3 year(s) |
| Height | 35 mm |
| Width | 244 mm |
| Depth | 24.4 mm |
| PCI-Ex16 | 2 |
| RAM-Slots | 4 |
| MB-Format | micro-ATX |
| MB-Socket | AM4 |
| PCI | 0 |
| Serial-or-Paralel | No/No |
| USB3 | 4-8 |
| PCI-Ex1 | 1 |
| Onboard-CPU | No |
