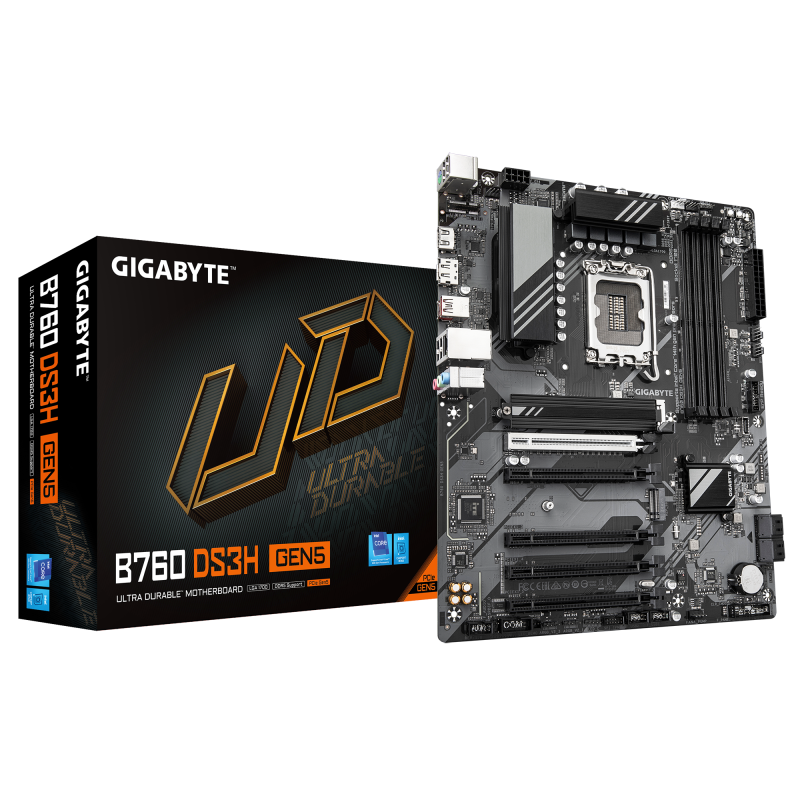

Placă de bază GIGABYTE B760 DS3H GEN5, ATX, socket LGA1700
992,99 lei
În stoc
Livrare estimată: 3–5 zile lucrătoare
Garanție 36 luni · Retur 14 zile · Factură pe firmă
0757 183 317Disponibil prin SEAP
Placă de bază GIGABYTE B760 DS3H GEN5, ATX, socket LGA1700, chipset Intel B760, suport DDR5 192 GB, PCIe 5.0 x16, M.2 Gen4, LAN Gigabit.
| Lithium weight per battery | 0.07 g |
|---|---|
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| 2nd M.2 highest PCI Express generation | 4.0 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| PCI Express x16 (Gen 3.x) slots | 4 |
| Motherboard chipset | Intel B760 Express |
| Product colour | Dark brown |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Audio Chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| 12V power connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Serial port headers | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| S/PDIF out connector | Yes |
| Front panel connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 4 |
| TPM connector | Yes |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Supported memory clock speeds | 5600,5200,4800,4400 MHz |
| Supported memory clock speed (max) | 5600 MHz |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 256 GB |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Memory channels | Dual-channel |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Wi-FI | No |
| Ethernet LAN | Yes |
| Weight | 13.2 kg |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 15 kg |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| DVI-D ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Line-in | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Supported storage drive types | HDD & SSD |
| Number of HDDs supported | 4 |
| RAID levels | 0, 1, 5, 10 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Warranty period | 3 year(s) |
| Height | 35 mm |
| Depth | 24.4 mm |
| Width | 30.5 mm |
| MB-Socket | 1700 |
| RAM-Slots | 4 |
| MB-Format | micro-ATX |
| PCI-Ex1 | 2 |
| PCI | 0 |
| Serial-or-Paralel | No/No |
| USB3 | 4-8 |
| PCI-Ex16 | 1 |
| Onboard-CPU | No |
