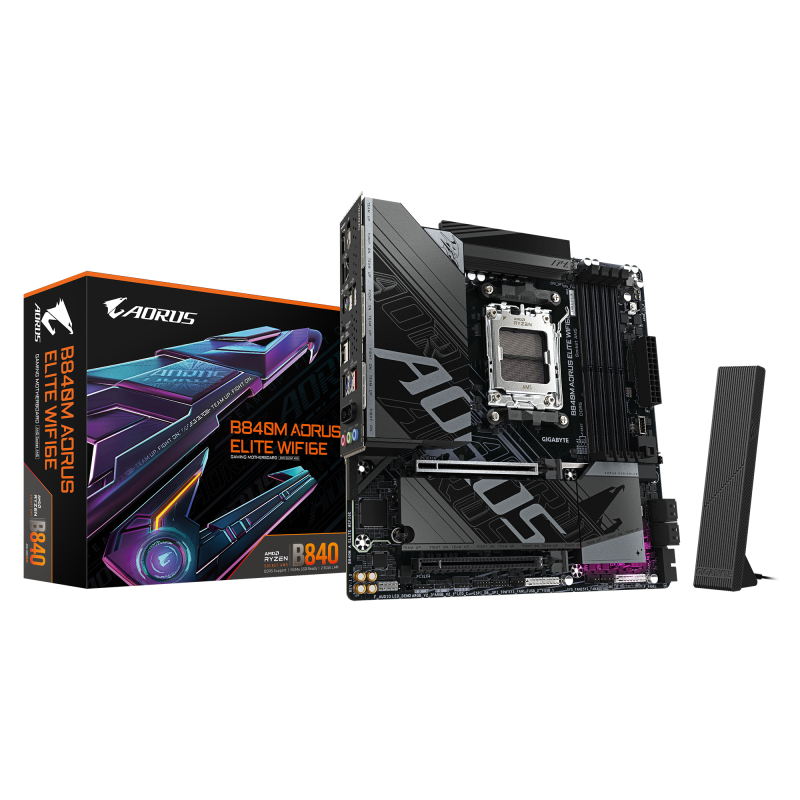

Placă de baza Gigabyte B840M aorus elite WIFI6E AM5, 4X DDR5
1.303,99 lei
În stoc
Livrare estimată: 3–5 zile lucrătoare
Garanție 36 luni · Retur 14 zile · Factură pe firmă
0757 183 317Disponibil prin SEAP
Placa de Baza GIGABYTE B840M AORUS ELITE WIFI6E AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX
| Lithium weight per battery | 0.07 g |
|---|---|
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | Yes |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2580 |
| Motherboard chipset | AMD B840 |
| Product colour | Dark brown |
| Power source type | ATX |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Audio Chip | Realtek ALC897 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| DirectX version | 12.0 |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 4 |
| TPM connector | Yes |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |
| 12V power connector | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Products per shipping (inner) case | 1 pc(s) |
| Supported memory clock speed (max) | 8200 MHz |
| Supported memory clock speeds | 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz |
| ECC сompatibility | Non-ECC |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Memory channels | Dual-channel |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| Wi-FI | Yes |
| WLAN controller model | Realtek RTL8852CE |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Weight | 1.5 kg |
| Batteries included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Antenna included | Yes |
| Screws included | Yes |
| Package weight | 15.9 kg |
| Package height | 68 mm |
| Package width | 270 mm |
| Package depth | 268 mm |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor manufacturer | AMD |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| Line-in | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| PS/2 ports quantity | 1 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RAID levels | 0, 1, 10 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| Warranty period | 3 year(s) |
| Height | 35 mm |
| Width | 244 mm |
| Depth | 24.4 mm |
| PCI-Ex1 | 0 |
| RAM-Slots | 4 |
| MB-Format | micro-ATX |
| MB-Socket | AM5 |
| PCI-Ex16 | 2 |
| USB3 | 4-8 |
| Onboard-CPU | No |
| PCI | 0 |
| Serial-or-Paralel | No/No |
Ai o întrebare tehnică despre acest produs? Scrie-ne la suport@edever.ro sau sună la 0757 183 317 (L–V 9–17).
