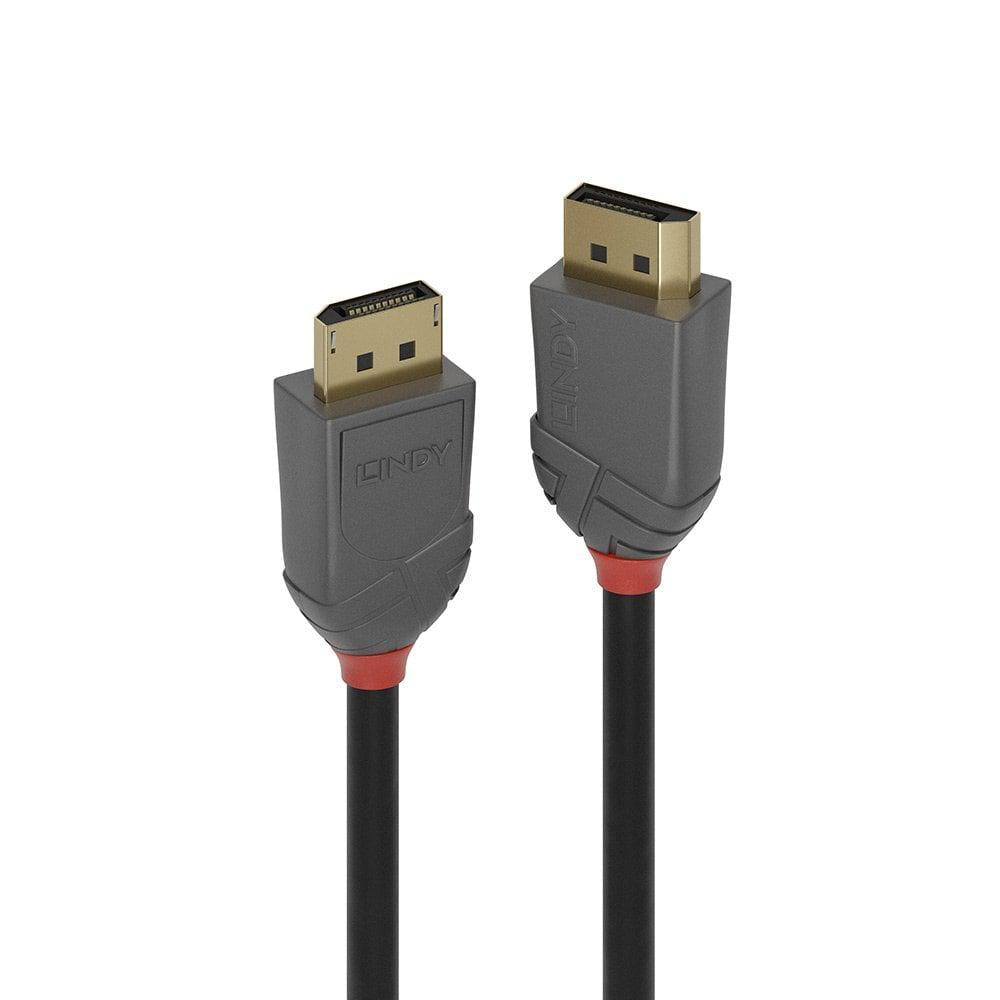

Cablu Lindy 1m DisplayPort 1.4
87,99 lei
În stoc
Livrare estimată: 3–5 zile lucrătoare
Garanție 24 luni · Retur 14 zile · Factură pe firmă
0757 183 317Disponibil prin SEAP
Connectors
- Connector A: DisplayPort Male
- Connector B: DisplayPort Male
- Housing Material: ABS
- Connector Plating: 24K Gold 15µm
- Pin Construction: Phosphor Bronze
- Pin Plating: 24K Gold 3µm
- Dimensions (approx.) WxDxH: 21.0x38.9x13.6mm (0.83x1.53x0.54in)
Cable Construction
- Length: 1m (3.28ft)
- Standard: DisplayPort 1.4
- Colour: Black
- Type: Round
- Jacket Diameter: 7.3mm (0.29in)
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- Conductor Gauge: 28AWG
- Shielding: Copper Braid 65%
| Certification | RoHS, REACH, UL |
|---|---|
| Product colour | Black, Grey |
| Cable type | Round cable |
| AWG wire size | 28 |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Contact material | Phosphor bronze |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| Connector material | Gold |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector contacts plating | Gold |
| Connector 1 gender | Male |
| Plug and Play | Yes |
| DisplayPort version | 1.4 |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 7680 x 4320 pixels |
| Cable length | 1 m |
| Colour sampling | 4:2:2 |
| Jacket material | Polyvinyl chloride (PVC) |
| Supported graphics resolutions | 4096 x 2160, 7680 x 4320 |
| Cable material | Tinned copper |
| Cable shielding | Copper |
| Data transfer rate | 32.4 Gbit/s |
| Nominal attenuation | 100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB |
| Cable diameter | 7.3 mm |
| Bend radius (min) | 5.84 cm |
| Harmonized System (HS) code | 84733080 |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating temperature (T-T) | -20 - 80 °C |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Connector 1 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
| Connector 2 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
