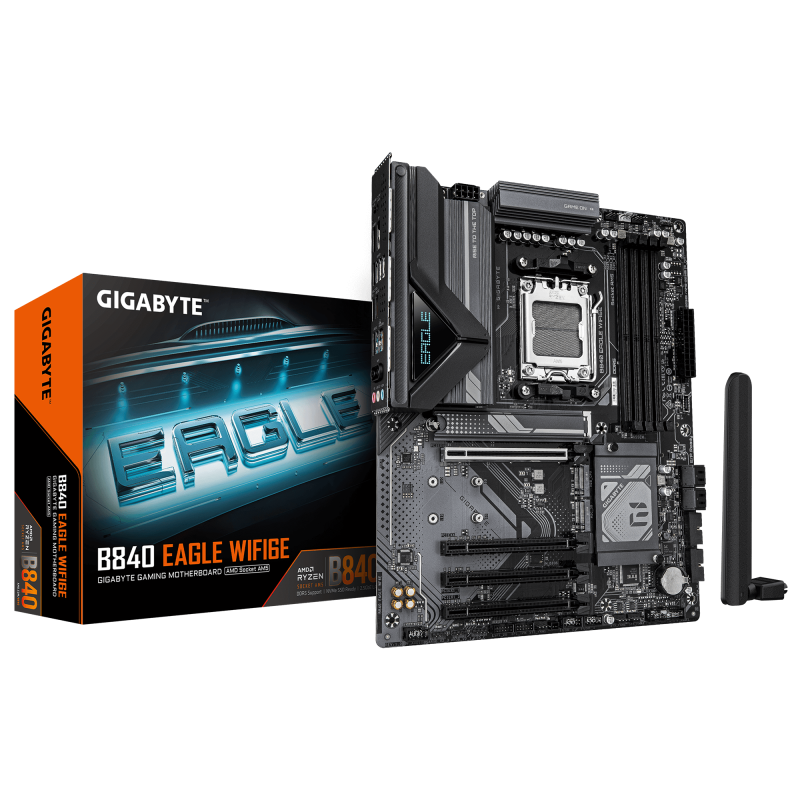

Placă de bază GIGABYTE B840 EAGLE WIFI 6E, ATX, socket AM5
1.147,99 lei
În stoc
Livrare estimată: 3–5 zile lucrătoare
Garanție 36 luni · Retur 14 zile · Factură pe firmă
0757 183 317Disponibil prin SEAP
Placă de bază GIGABYTE B840 EAGLE WIFI 6E, ATX, socket AM5, chipset B840, DDR5 192 GB, PCIe 4.0 x16, M.2 Gen4, WiFi 6E, LAN 2.5 Gbps.
| Lithium weight per battery | 0.07 g |
|---|---|
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Clear CMOS button | Yes |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | Yes |
| Number of M.2 (M) slots | 3 |
| 1st M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 2nd M.2 largest key size | 25110 |
| 3rd M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 highest PCI Express generation | 3.0 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| Motherboard chipset | AMD B840 |
| Power source type | ATX |
| Product colour | Dark brown |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Component for | PC |
| Audio output channels | 7.1 channels |
| Audio Chip | Realtek ALC897 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| DirectX version | 12.0 |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| HDCP version | 2.3 |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 4 |
| TPM connector | Yes |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |
| Number of EPS power connectors (8-pin) | 1 |
| 12V power connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Supported memory clock speed (max) | 8200 MHz |
| Supported memory clock speeds | 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| ECC сompatibility | Non-ECC |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Memory channels | Dual-channel |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| Wi-FI | Yes |
| WLAN controller model | Realtek RTL8852CE |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Weight | 1.64 kg |
| Batteries included | Yes |
| Bundled software | Norton® Internet Security (OEM version) |
| Antenna included | Yes |
| Screws included | Yes |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 18.7 kg |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor manufacturer | AMD |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| Line-in | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID levels | 0, 1, 5, 10 |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| Warranty period | 3 year(s) |
| Height | 35 mm |
| Width | 30.5 mm |
| Depth | 24.4 mm |
| PCI-Ex1 | 0 |
| RAM-Slots | 4 |
| MB-Format | micro-ATX |
| MB-Socket | AM5 |
| PCI-Ex16 | 2 |
| USB3 | 4-8 |
| Onboard-CPU | No |
| PCI | 0 |
| Serial-or-Paralel | No/No |
