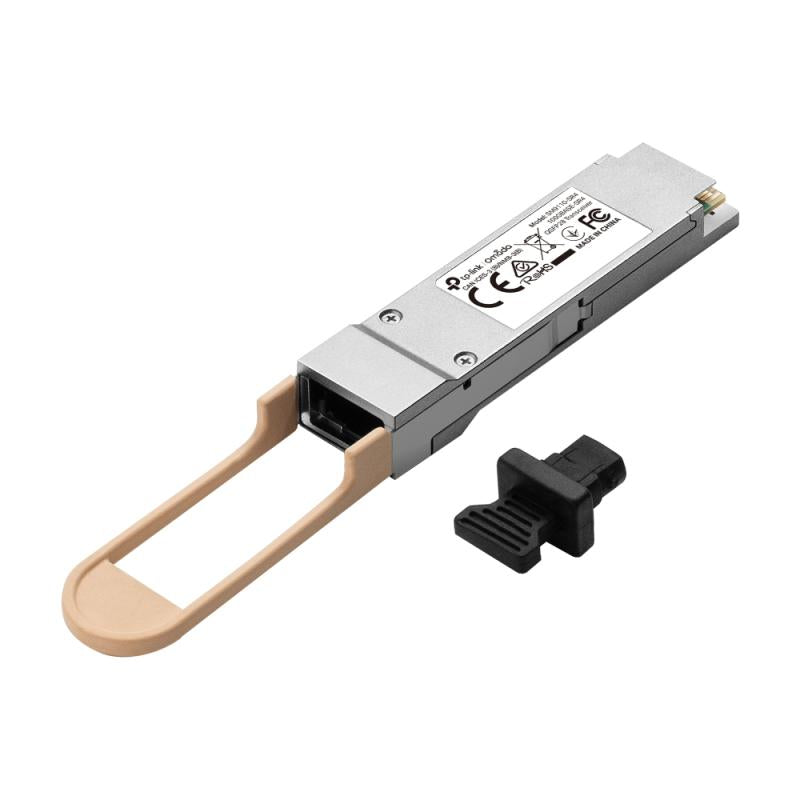

Omada 100GBASE-SR4 QSFP28 Transceiver

Name: Omada 100GBASE-SR4 QSFP28 Transceiver
Brand: TP-LINK
SKU: TL-SM9110-SR4
Price: 1036.99 RON
Availability: InStock

Cod TL-SM9110-SR4Toate produsele Tp-link →

1.036,99 lei

În stoc

Livrare estimată: 3–5 zile lucrătoare

Garanție 60 luni · Retur 14 zile · Factură pe firmă

Cere ofertă pentru cantitate sau proiect

0757 183 317Disponibil prin SEAP

Transceiver TPL Omada 100GBASE-SR4 QSFP28 SPEC: Dual Rate 103.125Gbps and 41.2Gbps, 850nm MMF (Multimode fiber), MTP/MPO-12, 100m Distance @OM4 at 103.125Gbps (70m Distance @OM3 at 103.125Gbps, 150m Distance @OM4 at 41.2Gbps) FEATURE: Support DDM, Built-in CDR, Hot Swappable

Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certification	QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP
Product colour	Metallic
Form factor	QSFP28
Ethernet interface type	40 Gigabit Ethernet, 100 Gigabit Ethernet
Networking standards	IEEE 802.3ba, IEEE 802.3bm
Hot-swap	Yes
Input voltage	3.3 V
Country of origin	China
Fiber ethernet cabling technology	40GBASE, 100GBASE
Maximum data transfer rate	100000 Mbit/s
Storage relative humidity (H-H)	0 - 85%
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 85%
Operating temperature (T-T)	0 - 70 °C
Wavelength	850 nm
Fiber optic connector	MPO-12, MTP
Tx power (min)	-8.4 dBmW
Tx power (max)	2.4 dBmW
Single-mode fiber (SMF) supported	No
Maximum transfer distance	150 m
Digital Diagnostics Monitoring (DDM)	Yes
Fiber cable diameters supported (core/cladding)	50/125 µm
SFP transceiver type	Fiber optic
Interface type	QSFP28
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SR4
Width	124 mm
Depth	18.4 mm
Height	117 mm
Switch-CM-Type	SFP
