NOULivrare gratuită

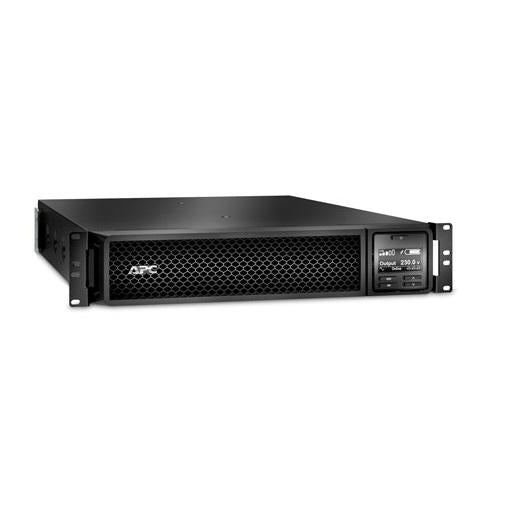

PC Smart-UPS SRT 2200VA RM 230V Network
20.914,99 lei
În stoc
Livrare estimată: 3–5 zile lucrătoare
Garanție 36 luni · Retur 14 zile · Factură pe firmă
APC Smart-UPS SRT 2200VA RM 230V Network Card
High density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Network management card, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, USB cable, Warranty card
Output power capacity
1.98kWatts / 2.2kVA
Rack Height
2U
Output Connections
(8) IEC 60320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
(2) IEC 60320 C19 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P
Cord Length
2.4meters
Output Voltage Distortion
Less than 2 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Built-in bypass
| Battery capacity | 367 VAh |
|---|---|
| Number of batteries supported | 1 |
| Battery recharge time | 3 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery life (max) | 5 year(s) |
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
| International Protection (IP) code | IP20 |
| Display type | LCD |
| Cable length | 2.44 m |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Waveform | Sine |
| UPS topology | Double-conversion (Online) |
| Input operation voltage (max) | 275 V |
| Input frequency | 40 - 70 Hz |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Audible alarm(s) | Yes |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Emergency Power Off (EPO) | Yes |
| Output power capacity | 2.2 kVA |
| Input operation voltage (min) | 160 V |
| Output power | 1980 W |
| Surge energy rating | 340 J |
| Noise level | 55 dB |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 3656.79 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Non-operating altitude | 0 - 15000 m |
| Storage temperature (T-T) | -20 - 50 °C |
| Output voltage | 230 V |
| Package weight | 3.4 kg |
| Package depth | 810 mm |
| Package height | 246 mm |
| Package width | 599 mm |
| AC outlets quantity | 12 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| SmartSlot | Yes |
| Serial interface type | RJ-45 |
| Serial interface | Yes |
| AC outlet types | C13 coupler, C19 coupler |
| Sustainability certificates | ENERGY STAR, Green Premium |
| Weight | 2.5 kg |
| Width | 432 mm |
| Depth | 58.4 mm |
| Height | 8.5 mm |
| UPS-Management | Yes |
| Rackable | Yes |
