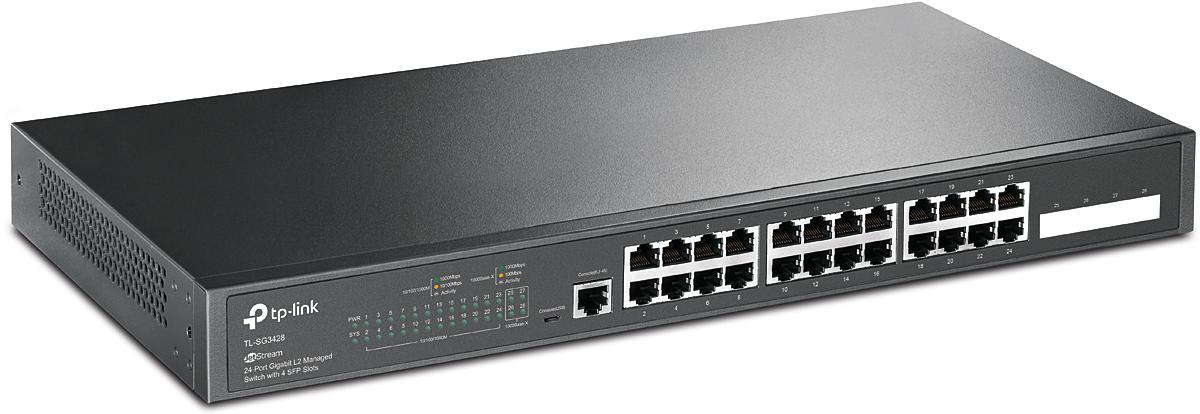

TPL SW 24P-GB 4 SFP L2 MANAGED
1.855,99 lei
În stoc
Livrare estimată: 3–5 zile lucrătoare
Garanție 60 luni · Retur 14 zile · Factură pe firmă
0757 183 317Disponibil prin SEAP
| Numar porturi |
24x RJ-45
|
| Porturi |
24x RJ45
4x SFP 1x Console |
| Viteza de transfer |
10/100/1000 Mbps
|
| Management |
Da
|
| Putere consumata |
19.22 W
|
| Alimentare |
100 - 240VAC, 50/60Hz
|
| Dimensiuni |
440 x 180 x 44 mm
|
| Montare in rack |
Da
|
| Functii LED |
Link / Act
|
| Adrese MAC |
8 K
|
| Metoda forwarding |
41.66 MB
|
| Layer | Layer-2 |
|---|---|
| Forwarding rate | 41.66 Mpps |
| LED indicators | Yes |
| Jumbo frames support | Yes |
| Static route | Yes |
| Jumbo frames | 9000 |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Switching capacity | 56 Gbit/s |
| Packet buffer memory | 12 MB |
| Number of static routes | 48 |
| Form factor | 1U |
| Stackable | No |
| Number of fans | 0 fan(s) |
| Rack mounting | Yes |
| Product colour | Black |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Harmonized System (HS) code | 85176990 |
| Switch layer | L2/L3 |
| MIB support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Switch type | Managed |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| IP routing | Yes |
| Number of VLANs | 4000 |
| Head-of-line (HOL) blocking | Yes |
| 10G support | No |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Policy-based routing | Yes |
| Link aggregation | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Heat dissipation | 65.58 BTU/h |
| Storage relative humidity (H-H) | 5 - 90% |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
| Package depth | 250 mm |
| Package height | 80 mm |
| Package width | 528 mm |
| Package weight | 2.77 kg |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| Console port | RJ-45/Micro-USB |
| Power supply included | No |
| Power over Ethernet (PoE) | No |
| Power consumption (max) | 19.22 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Authentication type | AAA, RADIUS, TACACS+ |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| IP-MAC-Port binding | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Static port security | Yes |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Depth | 180 mm |
| Width | 440 mm |
| Height | 44 mm |
| LAN-Ports | 24 |
| LAN port type | Gigabit |
| Rackable | Yes |
| Redundant-PSU | Yes |
